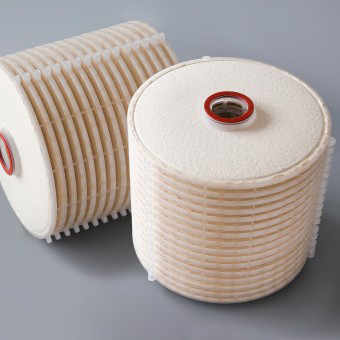

CSD Lenticular Filter

CSD Filter Series constructed of high quality lignocellulose material and inorganic filter aid. The inner 3-D crisscrossing structure allows it to function as a depth filter while providing great filtration efficiency, high dirt holding capacity, and longer lifetime. Filter paper is produced automatic production lines. All raw materials are tested using strict quality control procedures to ensure filter quality and performance during use.

Specification
Performance
Ordering Information

Operating Conditions

Maximum Temperature	80°C
Max.Differential Pressure	2.4bar / 25°C
Flush	Pure water 50L/m2 Flow rate 20 lpm/m2
Steaming Sterilization (Autoclave)	121°C / 30min

Materials of Construction

Filter Medium	Cellulose, Diatomaceous Earth
Cage	Polypropylene

Filtration Area

Number of Lenses	Filtration Area
Number of Lenses	12 " Diameter	16" Diameter
7	0.7 m2	/
9	0.9 m2	2.1 m2
12	1.1 m2	2.8 m2
14	1.3 m2	3.2 m2
15	1.4 m2	3.5 m2
16	1.5 m2	3.7 m2

Ordering Information

	Removal Ratings	End Cap	Grade	Nominal Length	Number of Lenses	Seal Material
CSD	0004=0.04-0.2μm	DOE=Double Open End	S=Standard	12= 5"	S =7 Lenses	S=Silicone
	0020=0.2-0.4 μm	TC=222 O-ring/Flat (PBT Insert)	P=Pharmaceutical	16=16"	T =12 Lenses	E=EPDM
	0040=0.4-0.6 μm		F=Process Fluids	30=30"	M=14 Lenses	V=Viton
	0060=0.6-0.8 μm			40=40"	D =16 Lenses
	0100=0.8-1.5 μm
	0150=1.5-3.0 μm
